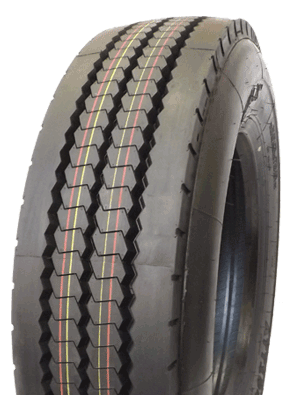

ATT104
PRODUCED USING THE LATEST EUROPEAN MANUFACTURING EQUIPMENT, THE ATT104 IS A PREMIUM URBAN TYRE
- Premium 20mm tread depth designed for extended tread wear.
- Heavy shoulder and sidewall to resist curb scuff damage.
- Sidewall depth indicators provide visual indication of sidewall wear.
- 6mm undertread allows for efficient regrooving for extended original tread life.
- All-wheel position tyre optimised for urban operation involving frequent stopping and starting such as transit buses, delivery vehicles and waste trucks.
TECHNICAL SPECIFICATIONS
| TYRE SIZE | PLY | TT/TL | TREAD DEPTH (mm) |
REC-RIM WIDTH |
LOAD INDEX |
SPEED SYMBOL |
TYRE DIMENSIONS (mm) |
|
|---|---|---|---|---|---|---|---|---|
| SW | OD | |||||||
| 11R22.5 | 16PR | TL | 20.0 | 8.25 | 148/145 | J | 279 | 1057 |
| 275/70R22.5 | 18PR | TL | 20.0 | 8.25 | 148/145 | J | 276 | 966 |
| **295/80R22.5 | 16PR | TL | 20.0 | 8.25 | 152/148 | J | 298 | 1062 |
